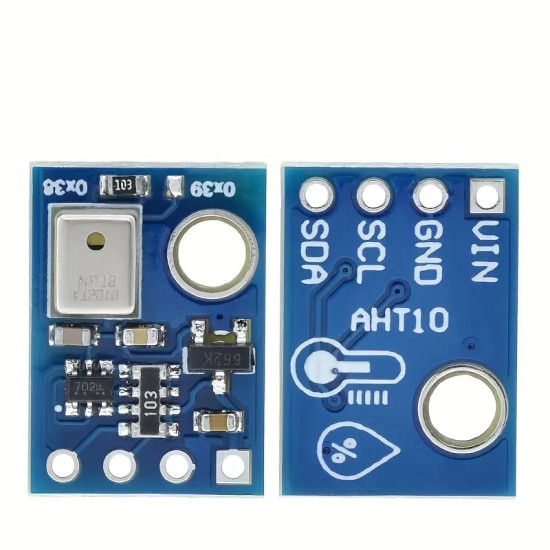

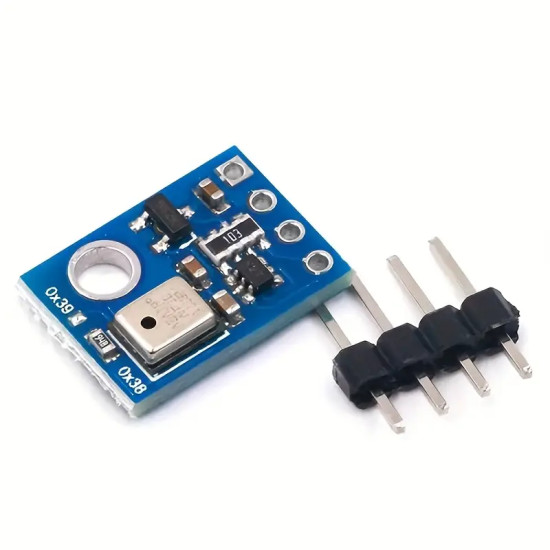

High Precision Digital Temperature and Humidity Sensor Measurement Module AHT10 with I2C
800.00DA
Price in reward points: 800
Note:
Please receive this module and leave it in an environment with humidity above 80% for 12 hours to ensure its accuracy is restored.
The AHT10, a new generation of temperature and humidity sensors, sets a new standard in terms of size and intelligence: it is integrated into a flat, lead-free, dual-row reflow solder SMD package with a 4 x 5 mm bottom and a height of 1.6 mm. The sensor outputs a calibrated digital signal in the standard I₂C format.
The AHT10 is equipped with a new dedicated ASIC chip, an improved MEMS semiconductor capacitive humidity sensing element, and a standard integrated temperature sensing element. Its performance has been significantly improved, surpassing the reliability of the previous generation of sensors. The first generation of temperature and humidity sensors has been improved for greater stability in harsh environments. Features:

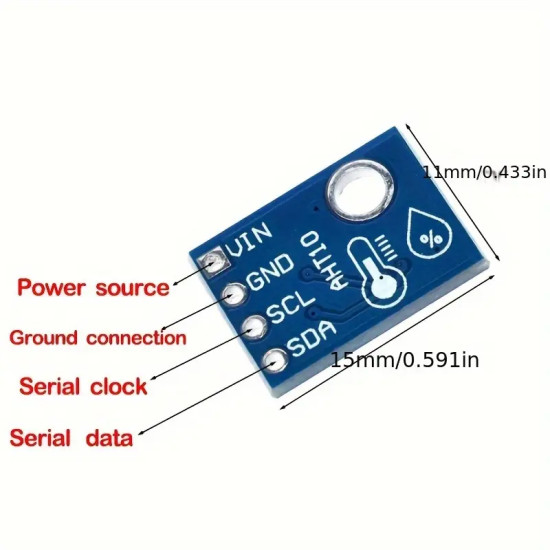

1. Module Dimensions: 15 x 11 mm
2. Interface Type: I2C
3. Operating Voltage: 1.8 - 6.0 V
4. Interface Dimensions: 4 x 2.54 mm Pitch
5. Humidity Accuracy: ± 2% (typical)
6. Humidity Resolution: 0.024%
7. Temperature Accuracy: ± 0.3 °C (typical)
8. Temperature Resolution: 0.01 °C (typical)
9. Operating Temperature: -40 °C to 85 °C
Contents:
1 x AHT10 Digital Temperature and Humidity Measurement Module
